EV Charger LSAC

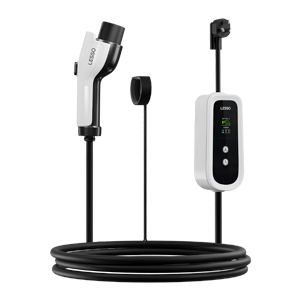

LESSO Portable EV Charger

LSAC

3.5 / 7kW | Single phase

LSAC02

The LSAC series car charger is a device that facilitates electric vehicle users to charge through 220V mains power. Its working principle is to use the car charger to convert AC power into DC power, and then charge the power battery. Suitable for convenient carrying at home.

储能便携系列 icon-切换方便

Multiple current levels for easy switching

储能逆变器系列 icon-31.兼容电源电压或发电机电源

Powerful compatibility, no model selection

储能逆变器系列-icon_26.IP66保护s

Protection grade IP66

储能逆变器系列 icon-28.智能充电器设计

Schedule charging to avoid peak hours

储能储能系列 icon-安全性

Protection against overheating, overcurrent, leakage, overvoltage,output exception,CP fault, communication fault, and relay fault

Performance Advantages

This charger for modern EV users offers a convenient and safe charging solution with its multi-level current regulation, wide vehicle compatibility and strong environmental protection. Users can easily switch current levels to adapt to different charging needs, whether it is fast charging or slow charging. It has an intelligent charging reservation function, which helps to avoid peak hours of the grid and save energy consumption. In addition, its comprehensive safety protection system, including multiple protections such as over-current, short circuit, and over-voltage, ensures the safety and reliability of the charging process and provides all-round protection for electric vehicles.

Model: LSAC3K5-P-C1
Display Mode: LED light
Output Power: 3.5kW
Rated Output Voltage: 220V
Rated Output Current: 13A
Rated Output Frequency: 50Hz
Charging interface: charging gun × 1 (GB)
Line Length: 5m (customizable)
Use Metho: Plug & play
Operation Temperature: -20°C - +50°C



Model: LSAC3K5-P-C2
Display Mode: 2.4 "color TFT screen
Output Power: 3.5kW
Rated Output Voltage: 220V
Rated Output Current: 13A
Rated Output Frequency: 50Hz
Charging interface: charging gun × 1 (GB)
Line Length: 5m (customizable)
Use Metho: Plug & play
Operation Temperature: -20°C - +50°C



Model: LSAC7K-P-C1
Display Mode: LED light
Output Power: 7kW
Rated Output Voltage: 220V
Rated Output Current: 32A
Rated Output Frequency: 50Hz
Charging interfacevcharging gun × 1 (GB)
Line Length: 5m (customizable)
Use Metho: Plug & play
Operation Temperaturev: -20°C - +50°C



Model: LSAC7K-P-C2
Display Mode: 2.4 "color TFT screen
Output Power: 7kW
Rated Output Voltage: 220V
Rated Output Current: 32A
Rated Output Frequency: 50Hz
Charging interface: charging gun × 1 (GB)
Line Length: 5m (customizable)
Use Metho: Plug & play
Operation Temperature: -20°C - +50°C



See datasheet for details
