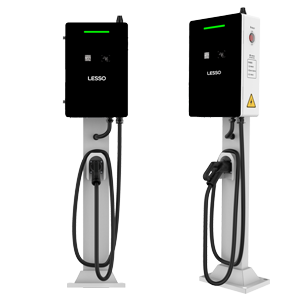

EV Charger LSDCI

LESSO DC EV Charger

LSDCI

30 / 40kW | Three phase

LSDCI02

The 30kW & 40kW integrated DC fast charging device is characterized by strong applicability, easy installation, and high cost-effectiveness. It is suitable for public places such as shopping malls, office buildings, and other public areas.

储能逆变器系列 icon_9.易安装s

Easy installation and easy maintenance

储能便携系列 icon-漏电保护

Configure A-type leakage protection module

储能便携系列 icon-IP55

IP55 protection level, worry free use

储能便携系列 icon-急停按钮

Equipped with emergency stop buttons for easy response to emergency situations

Performance Advantages

The DC charger is a compact direct current fast-charging device favored for its versatility, ease of installation, and high cost-performance, making it especially suitable for installation in villas and charging stations. Its screenless design not only exudes simplicity and fashion but also facilitates user operation. The built-in multiple protection modules ensure safety and reliability during use. Additionally, with an IP55 protection rating, this charger provides stable charging services both indoors and outdoors.

Model: LSDCI-E-30/1000
Output Power: 30kW
Rated Output Voltage: 1000V
Rated Output Current: 100A
Rated Output Frequency: 50/60Hz
Charging interface: CCS2 charging gun × 1 (GB)
Line Length: 5m (customizable)
Communication method: BLE5.0/RS485,Ethernet/4G/WlFI(optional)
Startup method: QR code/Card/BLE5.0/PnC
Operation Temperature: -25°C - +55°C

Model: LSDCI-U-30/1000
Output Power: 30kW
Rated Output Voltage: 1000V
Rated Output Current: 100A
Rated Output Frequency: 50/60Hz
Charging interface: CCS1 charging gun × 1 (GB)
Line Length: 5m (customizable)
Communication method: BLE5.0/RS485,Ethernet/4G/WlFI(optional)
Startup method: QR code/Card/BLE5.0/PnC
Operation Temperature: -25°C - +55°C

Model: LSDCI-E-40/1000
Output Power: 40kW
Rated Output Voltage: 1000V
Rated Output Current: 133A
Rated Output Frequency: 50/60Hz
Charging interface: CCS1 charging gun × 1 (GB)
Line Length: 5m (customizable)
Communication method: BLE5.0/RS485,Ethernet/4G/WlFI(optional)
Startup method: QR code/Card/BLE5.0/PnC
Operation Temperature: -25°C - +55°C

Model: LSDCI-U-40/1000
Output Power: 40kW
Rated Output Voltage: 1000V
Rated Output Current: 133A
Rated Output Frequency: 50/60Hz
Charging interface: CCS1 charging gun × 1 (GB)
Line Length: 5m (customizable)
Communication method: BLE5.0/RS485,Ethernet/4G/WlFI(optional)
Startup method: QR code/Card/BLE5.0/PnC
Operation Temperature: -25°C - +55°C

See datasheet for details
