Pure Black series
Aesthetic Design, Pure black technology aesthetics, Darker, Purer
Features and Benefits
Highly-resistant Black Crystal Material
Perfectly integrates into environments to bring premium technology and modernity to buildings.
Lower LID
Lower oxygen and carbon content result in lower LID.
Extreme Weather
Through harsh weathering tests of sand, dust, salt mist, ammonia, etc., to easily copes with extreme weather of outdoor environment.
AAO Metal Border
AAO metal border hardcore protection, applied in the aerospace industry, adapts to outdoor environments ranging from -40 to +85 ℃.
MBB Half-cut Cell Technology
Excellent hot spot performance, with stronger anti-cracking and anti-grid breaking capabilities, Lower risk of hot spots.
Better Temperature Coefficient
Lower temperature coefficient and lower operating temperature can ensure higher power generation.
Lower BOS Cost
By series and parallel design, to reduce the series RS and achieve higher power output and lower BOS cost.

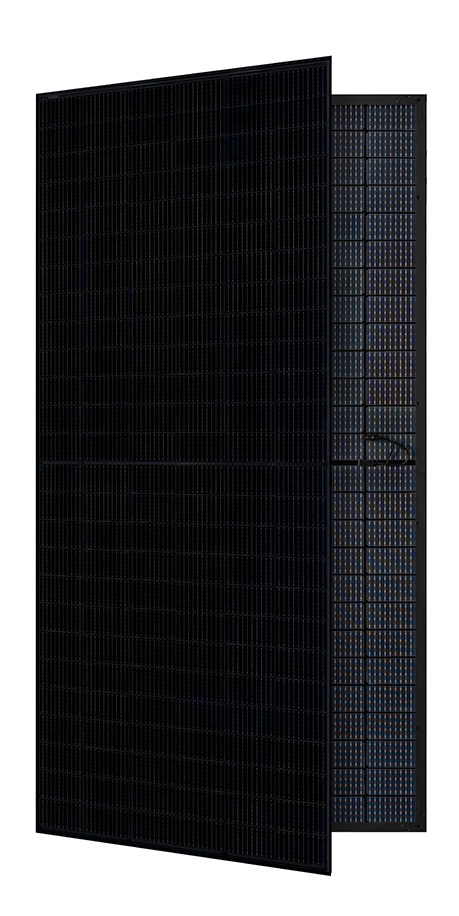

Bifacial Gain
Double sides power output to reach higher comprehensive efficiency and get more profit.
Trustworthy Quality
100% Cells Sorting
Ensure Color and Power Difference. Ensure high yields, consistent performance and durability. First of 52 steps strict quality control and inspection process.
100% Inspection
Before and After Lamination. Most stringent acceptance criteria and tightest tolerance. Intelligent alarm and stop mechanism in case of any deviation or errors.
100% EL Testing
Before and Following Lamination. Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.
100% Optional Testing
Ensure 3% Positive Power Tolerance. Comprehensive QC information management system with barcode ID. Quality traceable system in place to allow quality data flow constantly.
Production Information
|
PURE BLACK P-TYPE MONOFACIAL MODULES |
||||||
|
Wafer Size |
Power Range |
Maximum Efficiency |
No. of Cells |
Dimension |
Weight |
|
|
182mm |
395W - 405W |
20.74% |
108pcs (6x18) |
1722x1134x(35/30)mm |
21.7/20.6kg |
|
|
182mm |
440W - 450W |
20.79% |
120pcs (6x20) |
1909x1134x(35/30)mm |
23.2/22.1kg |
|
|
182mm |
485W - 495W |
20.85% |
132pcs (6x22) |
2094x1134x(35/30)mm |
25.1/23.8kg |
|
|
182mm |
525W - 545W |
21.1% |
144pcs (6x24) |
2278x1134x(35/30)mm |
28/26.3kg |
|
|
210mm |
635W - 660W |
21.25% |
132pcs (6x22) |
2384x1303x35mm |
33.8kg |
|
|
Warranty |
12 years product workmanship warranty, 25 years linear power output warranty |
|||||
|
Solar Cell Type |
182mm / 210mm Mono-crystalline (Half Cell) |
|||||
|
Front Glass |
3.2mm, highly transparent tempered glass with anti-reflective coating |
|||||
|
Frame |
Anodized aluminum alloy (Silver / Black) |
|||||
|
Cables |
4mm² PV cable, 300mm or customized length |
|||||
|
Junction Box / Connector |
IP68 rated / MC4 compatible |
|||||
|
Working Temperature |
-40 - +85℃ |
|||||
|
Maximum System Voltage |
1500V DC |
|||||
|
Nominal Maximum Fuse Current |
25A / 30A |
|||||
See datasheet for details
FAQ
In contrast to the blue mono-crystalline cell, white back panel and metallic border of the traditional solar module, the pure black module takes the professional blackening treatment of the battery as the core, which makes the appearance of the module appear pure black, successfully cast off the shackles of traditional appearance.
Technically, the module is made of N-type silicon and Topcon technology, with an efficiency increase of 0.2-0.3% and a power generation increase of 3% compared with traditional PERC technology.
The Topcon module currently has a price gap of about ¥0.01-¥0.0.2/WP with P-type module, or about $0.002 USD.
Because most people in Europe, the United States and Japan live in the roof tiles are generally black, with black-framed black components will be more beautiful and tidy.
