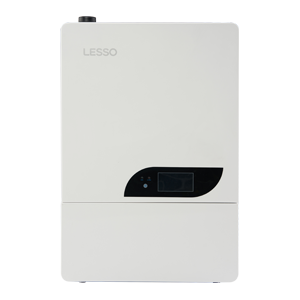

Wall-mounted Battery LSRW5-7.5kWh

LESSO Wall-mounted Battery

LSRW5-7.5kWh

5-7.5kWh | Low voltage battery

LSRW5-7.5kWh

The Wall-mounted Battery systems in the range of 5-7.5kWh, featuring low voltage batteries, offer homeowners a sustainable and reliable solution for managing energy consumption. These compact and efficient storage systems are designed to seamlessly integrate with renewable energy sources, like solar panels, enabling households to capture and store surplus energy for later use. With their wall-mounted design, these energy storage units provide a space-saving and aesthetically pleasing solution for both new and existing homes. By promoting energy independence and reducing reliance on the grid, these residential storage systems contribute to a more sustainable and resilient energy infrastructure, empowering homeowners to lower their utility costs and reduce their environmental footprint.

储能逆变器系列 icon-31.兼容电源电压或发电机电源

Long cycle life (>6000 cycles@ 80% DOD) with wall mounted options

储能逆变器系列 icon-29.可配置交流,太阳能输入优先级,充电电流

High safety, LiFePO4 battery; fire-resistant; lithium ferrous phosphate (LFP) cells meet UL1973, IEC62619 UN38.3 certification

储能储能系列 icon-时间寿命

A 15-year life design with a long lifespan and superior performance

储能储能系列 icon-环保无污染

Environmental protection: Non-polluting and environmentally friendly

Performance Advantages

The wall-mounted Battery with 5-7.5kWh capacity and low voltage batteries offer numerous benefits for homeowners. These compact units can be easily installed in homes with limited space, providing a convenient and unobtrusive storage solution. The low voltage batteries are designed for efficient energy storage and discharge, allowing homeowners to store surplus energy from renewable sources such as solar panels and use it when needed. With their advanced monitoring and control capabilities, these systems enable users to manage their energy usage and reduce reliance on the grid, ultimately leading to lower energy costs and a more sustainable lifestyle. The streamlined design and reliable performance make these energy storage systems a valuable addition to any residential property.

Model: LSRW51V100AH-LFP
Nominal voltage: 51.2V
Nominal capacity: 100Ah
Nominal energy: 5.12kWh
Standard charge voltage: 56V
Max continuous charge current: 80A
Max continuous discharge current: 80A
IP rating: IP55
Dimension: 454 x 698 x 170 mm
Warranty: 5 years



Model: LSRW51V120AH-LFP
Nominal voltage: 51.2V
Nominal capacity: 120Ah
Nominal energy: 6.14kWh
Standard charge voltage: 56V
Max continuous charge current: 100A
Max continuous discharge current: 108A
IP rating: IP55
Dimension: 470 x 695 x 224 mm
Warranty: 5 years



Model: LSRW51V150AH-LFP
Nominal voltage: 51.2V
Nominal capacity: 150Ah
Nominal energy: 7.68Wh
Standard charge voltage: 56V
Max continuous charge current: 120A
Max continuous discharge current: 150A
IP rating: IP55
Dimension: 470 x 695 x 243 mm
Warranty: 5 years



See datasheet for details
